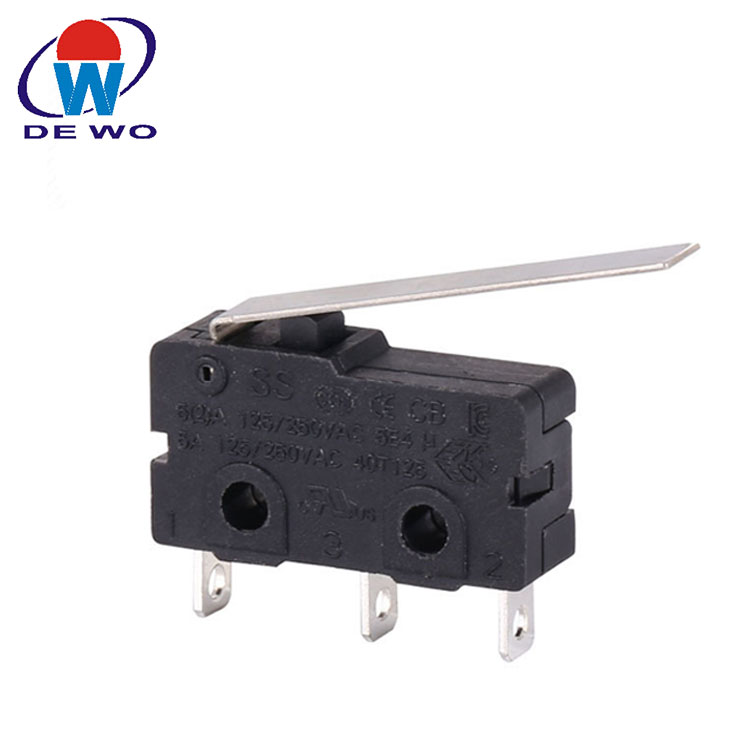

Item: Micro switch

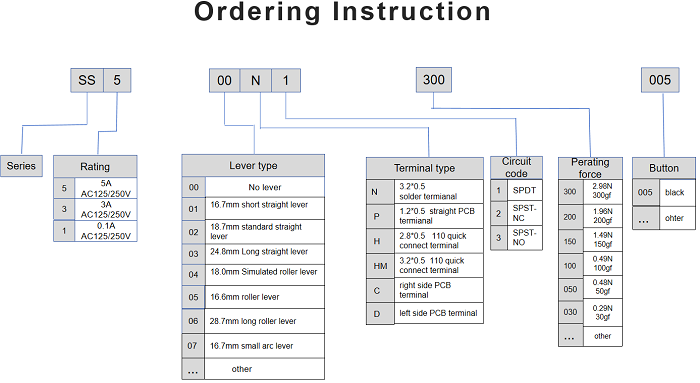

Part Number:SS5-03N1-050-005

Specification:

Rating:
5A 125/250VAC
3A 125/250VAC
0.1A 125/250VAC
Contact Resistance:≤100m? Max
Insulation Strength:≥100m? DC500V
Temperature: 40T125
Test Voltage: AC1500V 1 minute
Operating Force:0.29N-2.98N

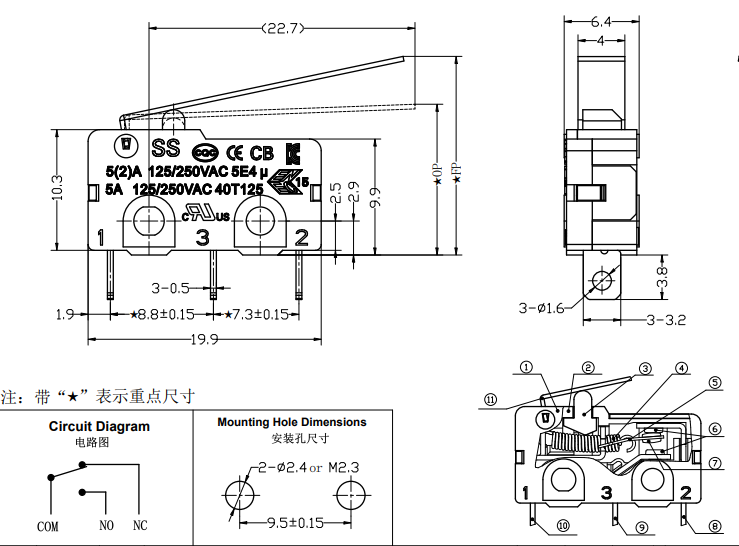

Free position:17.0mm±1.5mm
Operating position:13.0mm±1.5mm
Terminal type:Solder terminal/Straight PCB terminal/110 quick connect terminal/ left side PCB terminal/ right side PCB terminal
Soldering Temperature：350℃  3-5S
Ambient Temper.Used: -40℃～+125℃
Electronical life: 5E4
Mechanical life:1,000,000 cycles
Function: SPDT/SPST-NO/SPST/NC

Application:

new energy vehicles, home appliances,electronic communication
equipment, DR equipment, industrial equipment,etc.

Certification：

UL, CQC, ENEC,IATF, KC and SO ON
