TS15-9W56WTX
Item: LED Tact switch
Part Number:TS15-9W56TWX

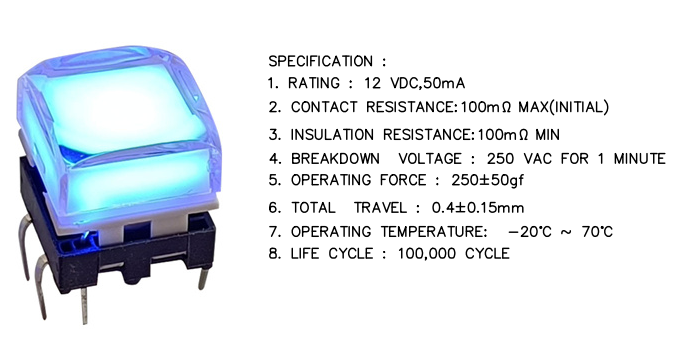

Specification:
Rating: 12VDC, 50mA
Contact Resistance:100m? Max(initial)
Insulation Resistance:100m? MIN
Breakdown Voltage: 250VAC for 1 minute
Operating Force: 250±50gf
Total Travel: 0.4±0.15mm
Operating Temperature: -20℃～70℃
Life Cycle: 100,000 Cycle
Function: Momentary
Application:
Audio/ Visual
Computer Peripherals
Consumer Electronic
Instrumentation
Telecommunication
Medical Equipment
Datasheet download:
